Product Description

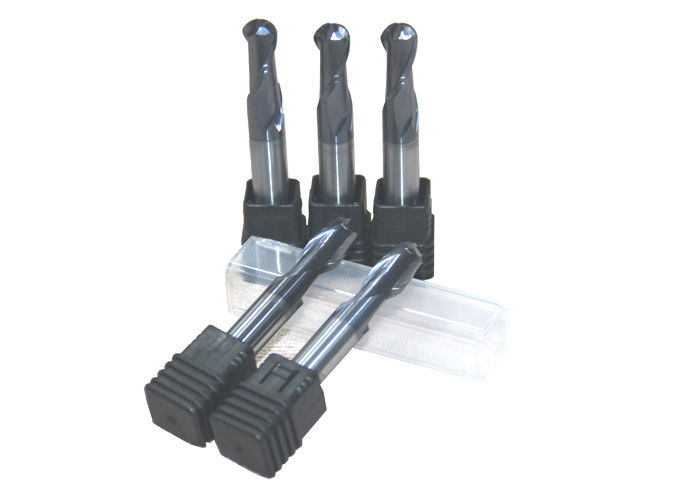

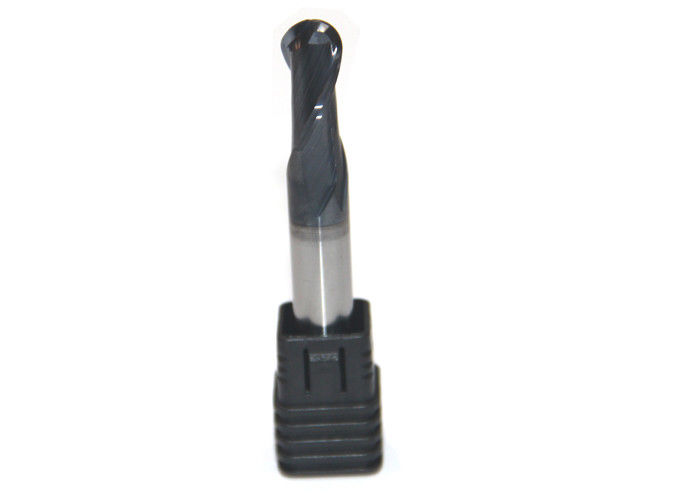

Black Color Ball End Mill Cutter Tungsten Carbide Material for Stainless Steel
Specifications:
E600 high performance milling cutter series is made of domestic well-known high-quality fine grain tungsten steel material, with flexural strength of 4300mpa and grain size of 0.4 μm, and is coated with AlTiN or TiSiN imported from Switzerland. The cutter is designed with large helix angle, which can realize high-speed and efficient machining, especially suitable for medium and high carbon steel, die steel, pre-hardened steel and other materials processing. With high precision quality control, and full inspection, all E600 series end mills are delivered with 100% qualification rate.
| Material |
GU25UF |
| WC |
88% |
| Co |
12% |
| TRS |
>4300N/mm2 |
| Hardness |
>92HRA |
| A.O.L |
50mm-150mm |
| Grain size |
0.4μm |
| Upto |
HRC60 |
| Flutes No |
4 Flutes |
| Coating |
AlTiN or TiSiN |
| Suitable for |
Steel,stainless steel,nickel alloy,Titanuim alloy,cast iron,plastic and other materials |
Coating:
| Item |
AlTiN |
TiSiN |
| Hardness(HV): |
3200 |
3600 |
| Thickness(μm): |
2.5-3 |
3 |
| Oxidation Temp(°): |
900 |
1000 |
| frictional Coefficient: |
0.3 |
0.45 |
| Color: |
Black |
Copper |
Standard Sizes
| Size |
Flute Length of End Mills(mm) |
| Flat end |
Ball Nose |
Round nose |
| D1*D4*50 |
3 |
2 |
3 |
| D1.5*D4*50 |
4 |
3 |
4 |
| D2*D4*50 |
5 |
4 |
5 |
| D2.5*D4*50 |
6 |
5 |
6 |
| D3*D4*50 |
8 |
6 |
8 |
| D3*D3*50 |
8 |
6 |
8 |
| D3.5*D4*50 |
9 |
7 |
9 |
| D4*D4*50 |
10 |
8 |
10 |
| D1*D6*50 |
3 |
2 |
3 |
| D1.5*D6*50 |
4 |
3 |
4 |
| D2*D6*50 |
5 |
4 |
5 |
| D2.5*D6*50 |
6 |
5 |
6 |
| D3*D6*50 |
8 |
6 |
8 |
| D3.5*D6*50 |
9 |
7 |
9 |
| D4*D6*50 |
10 |
8 |
10 |
| D6*D6*50 |
13 |
10 |
13 |
| D6*D6*50 |
15 |
12 |
15 |
| D7*D8*60 |
17 |
14 |
17 |
| D8*D8*60 |
20 |
16 |
20 |
| D10*75 |
25 |
20 |
25 |
| D12*75 |
30 |
24 |
30 |
| D14*100 |
45 |
28 |
35 |
| D16*100 |
45 |
32 |
40 |
| D18*100 |
45 |
36 |
40 |
| D20*100 |
45 |
40 |
40 |
|
Flute Length of Extended End Mills(mm)
|
| D3*D4*75 |
12 |
6 |
12 |
| D4*D4*75 |
16 |
8 |
14 |
| D5*D6*75 |
18 |
10 |
15 |
| D6*D6*75 |
24 |
12 |
20 |
| D8*75 |
25 |
16 |
25 |
| D3*D4*100 |
12 |
6 |
15 |
| D4*D4*100 |
20 |
8 |
15 |
| D5*D6*100 |
20 |
10 |
20 |
| D6*D6*100 |
30 |
12 |
25 |
| D8*D8*100 |
35 |
16 |
30 |
| D10*100 |
40 |
20 |
30 |
| D12*100 |
45 |
24 |
35 |
| D6*D6*150 |
45 |
12 |
40 |
| D8*D8*150 |
50 |
16 |
45 |
| D10*150 |
55 |
20 |
50 |
| D12*150 |
55 |
24 |
55 |
| D14*150 |
60 |
28 |
60 |
| D16*150 |
70 |
32 |
65 |
| D18*150 |
70 |
36 |
70 |
| D20*150 |
70 |
40 |
70 |
About us
Changzhou Xinpeng Tools Manufacturing Co., Ltd. is located in Xixiashu Town, Xinbei District, Changzhou City, Jiangsu Province, China. It is 5km away from Changzhou International Airport and 3km away from Shanghai Nanjing Expressway. The transportation is very convenient.
Adopting domestic and foreign high-quality tungsten steel base materials, the quality of cutting tools has reached the leading level of domestic counterparts, among which several special cutting tools can be equivalent to the quality of world brand cutting tools.
We mainly produce tungsten steel milling cutter, drill, reamer, drill reamer, boring cutter, T-groove milling cutter, chamfering cutter, Corner Radius End Milland other turning, milling and drilling cutters, and designs and manufactures various customized cutters and schemes for customers.
Our end mills are suitable for carbon steel, alloy steel, stainless steel, Quenched and tempered steel, non-ferrous materials, etc. all kinds of cutting tools and application schemes for the manufacturers of automobile, motorcycle engine, diesel engine, carburetor, compressor, mould industry, 3C manufacturing, etc are provided by us. Our end milling cutters are mainly matched with CNC machining center, CNC machine tools and other high-precision machine tools.
The newly launched special forming tools for hydraulic industry, and the product types cover the industry standards of domestic and foreign brand hydraulic leading enterprises (Rexroth, Vickers, sun, Parker, Hydra force, HYDAC, etc.).
