Home ProductsBall Nose End MillGeneral Processing Round Nose End Mill Cutter For Stainless Steel Nickel Alloy

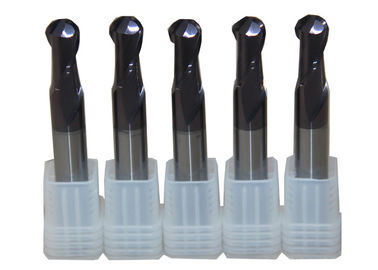

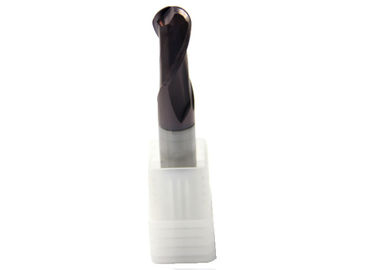

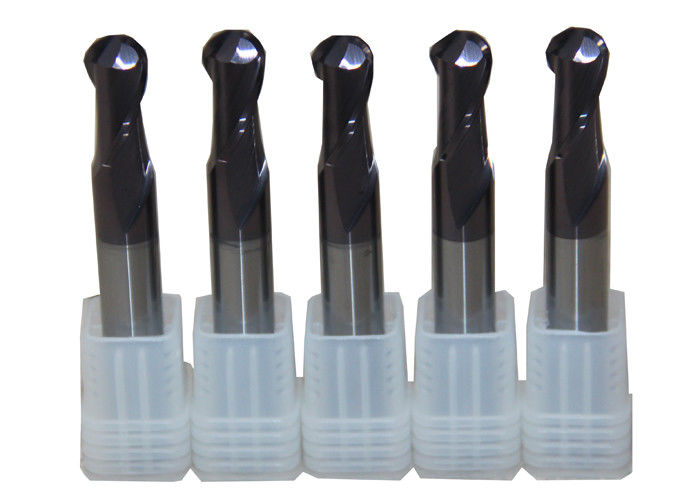

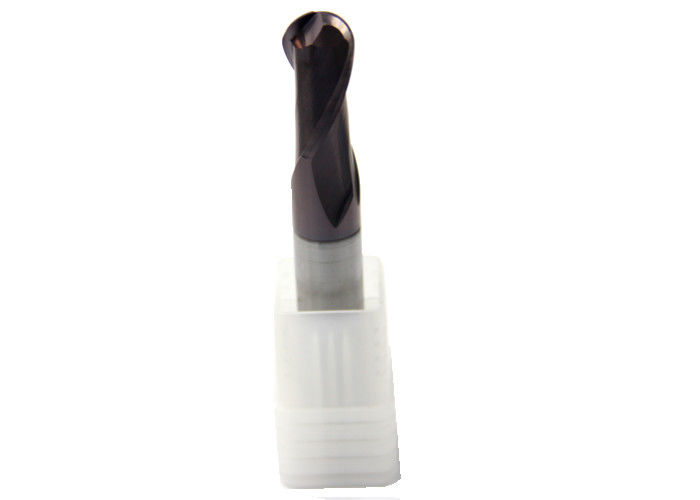

General Processing Round Nose End Mill Cutter For Stainless Steel Nickel Alloy
General Processing Round Nose End Mill Cutter For Stainless Steel Nickel Alloy General Processing Round Nose End Mill Cutter For Stainless Steel Nickel Alloy
Contact Now

General Processing Round Nose End Mill Cutter For Stainless Steel Nickel Alloy

Minimum Order Quantity : 10 pcs Price : Negotiation
Packaging Details : 1PC/ PVC Packing, 10pcs PVC Packing/Pack... Delivery Time : 1-35days
Payment Terms : T/T, L/C,Paypal... Supply Ability : 10000pcs/week
Place of Origin: MADE IN CHINA Brand Name: KTC
Certification: CCC Model Number: E550 MAX

Detail Information
Product Name: End Mills Raw Material: WF25 / K40
Coating: TiAlN-nano Color: Violet
Hardness: >92HRA Cutting Diameter: Based On The Flute Length
Flutes No.: 4 Flutes Grain Size: 0.6 μm
A.O.L: 50mm-150mm Flexural Strength: 4100mpa
Highlight:

ball nose tool

,

cnc ball nose bit

Product Description

General Processing Round Nose End Mill Cutter For Stainless Steel Nickel Alloy



KTC Tungsten Carbide General Processing End Mills



The recipe for the substrate used for ball nose end mills also varies with the application, but the standard formula is tungsten carbide with 10% cobalt mix. Carbide is actually a metal matrix composite in which cobalt particles are embedded in a tungsten carbide matrix. The cobalt acts as a binder, adding strength to the mix and making it more shatter resistant. The grain size of the tungsten and cobalt particles has a significant impact on performance and wear resistance of the material. Generally, the smaller the better. For most applications, a 10% grade of micro-grain carbide (under 1 micron in grain size) is sufficient.



Specifications:

E550MAX general processing milling cutter series adopt domestic high-quality fine grain tungsten steel material. Flexural strength: 4100mpa, grain size: 0.6 μm, with TiAlN-nano coating imported from Switzerland. The cutter is designed with special angle, especially suitable for carbon steel, alloy steel, pre-hardened steel and other materials processing.With high precision quality control, and full inspection, all E550MAX series end mills are delivered with 100% qualification rate.



Raw Material WF25 / K40
WC 88%
Co 12%
TRS >4100N/mm2
Hardness >92HRA
A.O.L 50mm-150mm
Grain size 0.6 μm
Upto HRC58
Flutes No 4F
Coating TiAlN-nano
Suitable for Steel,stainless steel,nickel alloy,Titanium alloy,cast iron,plastic and other materials



Coating:

Item TiAlN-nano
Hardness(HV): 2800
Thickness(UM): 2.5-3
Oxidation Temp(°): 800
frictional Coefficient: 0.3
Color: Violet



Standard Sizes

Size Flute Length of End Mills(mm)
Flat end Ball Nose Round nose
D1*D4*50 3 2 3
D1.5*D4*50 4 3 4
D2*D4*50 5 4 5
D2.5*D4*50 6 5 6
D3*D4*50 8 6 8
D3*D3*50 8 6 8
D3.5*D4*50 9 7 9
D4*D4*50 10 8 10
D1*D6*50 3 2 3
D1.5*D6*50 4 3 4
D2*D6*50 5 4 5
D2.5*D6*50 6 5 6
D3*D6*50 8 6 8
D3.5*D6*50 9 7 9
D4*D6*50 10 8 10
D6*D6*50 13 10 13
D6*D6*50 15 12 15
D7*D8*60 17 14 17
D8*D8*60 20 16 20
D10*75 25 20 25
D12*75 30 24 30
D14*100 45 28 35
D16*100 45 32 40
D18*100 45 36 40
D20*100 45 40 40



Flute Length of Extended End Mills(mm)


D3*D4*75 12 6 12
D4*D4*75 16 8 14
D5*D6*75 18 10 15
D6*D6*75 24 12 20
D8*75 25 16 25
D3*D4*100 12 6 15
D4*D4*100 20 8 15
D5*D6*100 20 10 20
D6*D6*100 30 12 25
D8*D8*100 35 16 30
D10*100 40 20 30
D12*100 45 24 35
D6*D6*150 45 12 40
D8*D8*150 50 16 45
D10*150 55 20 50
D12*150 55 24 55
D14*150 60 28 60
D16*150 70 32 65
D18*150 70 36 70
D20*150 70 40 70
