Solid Carbide Cnc Ball Nose Bit For Stainless Steel Nickel Alloy Machining

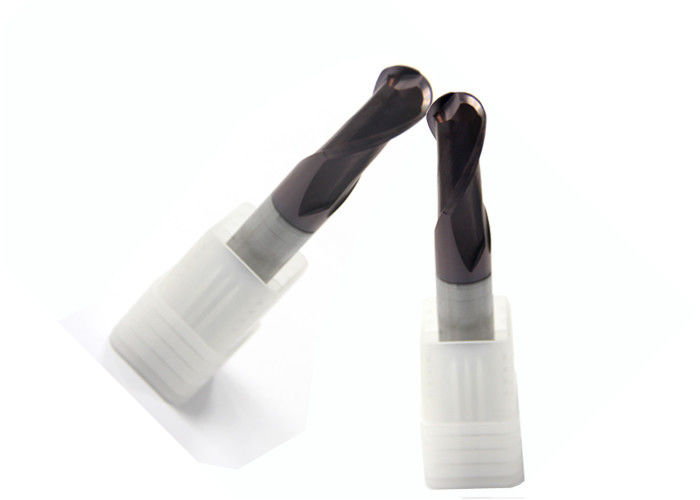

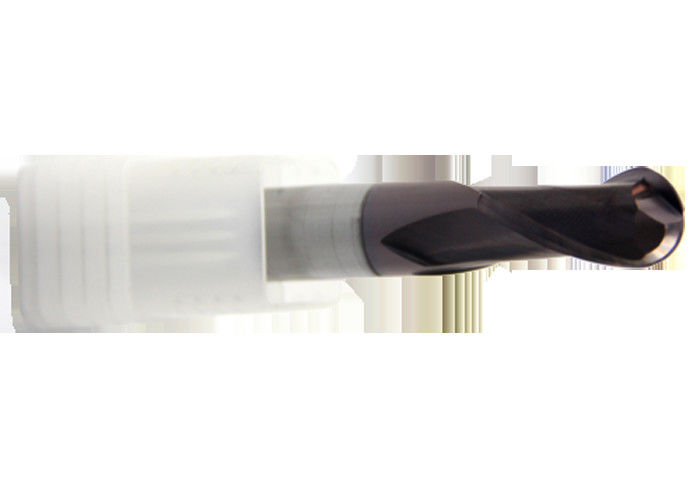

Solid Carbide Cnc Ball Nose Bit For Stainless Steel Nickel Alloy Machining Solid Carbide Cnc Ball Nose Bit For Stainless Steel Nickel Alloy Machining
Contact Now

Solid Carbide Cnc Ball Nose Bit For Stainless Steel Nickel Alloy Machining

Minimum Order Quantity : 10 pcs Price : Negotiation
Packaging Details : 1PC/ PVC Packing, 10pcs PVC Packing/Pack... Delivery Time : 1-35days
Payment Terms : T/T, L/C,Paypal... Supply Ability : 10000pcs/week
Place of Origin: MADE IN CHINA Brand Name: KTC
Certification: CCC Model Number: E550 MAX

Detail Information
Product Name: End Mills Raw Material: WF25 / K40
Coating: TiAlN-nano Color: Violet
Hardness: >92HRA Cutting Diameter: Based On The Flute Length
Flutes No.: 4 Flutes Grain Size: 0.6 μm
A.O.L: 50mm-150mm Flexural Strength: 4100mpa
Highlight:

ball nose tool

,

hard milling end mills

Product Description

Solid Carbide Cnc Ball Nose Bit For Stainless Steel Nickel Alloy Machining



KTC Tungsten Carbide General Processing End Mills



Specifications



Carbide is harder than high-speed or cobalt steel, making it more wear resistant at high speeds and providing longer tool life. With no coating or surface treatment, this uncoated tool can be used on a range of materials. Cutting diameter tolerance is + 0.0000 to - 0.00". The round shank accommodates a range of tool holders.


E550MAX general processing milling cutter series adopt domestic high-quality fine grain tungsten steel material. Flexural strength: 4100mpa, grain size: 0.6 μm, with TiAlN-nano coating imported from Switzerland. The cutter is designed with special angle, especially suitable for carbon steel, alloy steel, pre-hardened steel and other materials processing.With high precision quality control, and full inspection, all E550MAX series end mills are delivered with 100% qualification rate.



Raw Material WF25 / K40
WC 88%
Co 12%
TRS >4100N/mm2
Hardness >92HRA
A.O.L 50mm-150mm
Grain size 0.6 μm
Upto HRC58
Flutes No 4F
Coating TiAlN-nano
Suitable for Steel,stainless steel,nickel alloy,Titanium alloy,cast iron,plastic and other materials



Coating:

Item TiAlN-nano
Hardness(HV): 2800
Thickness(UM): 2.5-3
Oxidation Temp(°): 800
frictional Coefficient: 0.3
Color: Violet



Standard Sizes

Size Flute Length of End Mills(mm)
Flat end Ball Nose Round nose
D1*D4*50 3 2 3
D1.5*D4*50 4 3 4
D2*D4*50 5 4 5
D2.5*D4*50 6 5 6
D3*D4*50 8 6 8
D3*D3*50 8 6 8
D3.5*D4*50 9 7 9
D4*D4*50 10 8 10
D1*D6*50 3 2 3
D1.5*D6*50 4 3 4
D2*D6*50 5 4 5
D2.5*D6*50 6 5 6
D3*D6*50 8 6 8
D3.5*D6*50 9 7 9
D4*D6*50 10 8 10
D6*D6*50 13 10 13
D6*D6*50 15 12 15
D7*D8*60 17 14 17
D8*D8*60 20 16 20
D10*75 25 20 25
D12*75 30 24 30
D14*100 45 28 35
D16*100 45 32 40
D18*100 45 36 40
D20*100 45 40 40



Flute Length of Extended End Mills(mm)


D3*D4*75 12 6 12
D4*D4*75 16 8 14
D5*D6*75 18 10 15
D6*D6*75 24 12 20
D8*75 25 16 25
D3*D4*100 12 6 15
D4*D4*100 20 8 15
D5*D6*100 20 10 20
D6*D6*100 30 12 25
D8*D8*100 35 16 30
D10*100 40 20 30
D12*100 45 24 35
D6*D6*150 45 12 40
D8*D8*150 50 16 45
D10*150 55 20 50
D12*150 55 24 55
D14*150 60 28 60
D16*150 70 32 65
D18*150 70 36 70
D20*150 70 40 70



FAQ



Q: Are you trading company or manufacturer ?

A: we are the manufacturer Specializing in High-End carbide cutting tools and non-standard cutting tools, OEM&ODM accept;



Q: How long is your delivery time?

A: Generally 1- 35 working days, it depends ;



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer our stock sample for free charge and you please pay the cost of freight.

custom cutting tools negotiated then we will quote the best sample cost.





If you have another question, pls feel free to contact us.
