Multi Flute Carbide End Mill Cutter For Precise Milling Of Hardened Steel And Other Materials

Minimum Order Quantity :	10 pcs	Price :	Negotiation
Packaging Details :	1PC/ PVC Packing, 10pcs PVC Packing/Pack...	Delivery Time :	1-35days
Payment Terms :	T/T, L/C,Paypal...	Supply Ability :	10000pcs/week

Place of Origin:	MADE IN CHINA	Brand Name:	CKTC
Certification:	CCC	Model Number:	E550 MAX

Detail Information
Product Name:	End Mill Cutter	Coating:	TiAlN-nano
Color:	Violet	Hardness:	>92HRA
Cutting Diameter:	Based On The Flute Length	Flutes No.:	4 Flutes
Grain Size:	0.6 μm	Flexural Strength:	4100mpa
Highlight:	Precise Milling Carbide End Mill Cutter , Multi Flute Carbide End Mill Cutter , Hardened Steel Carbide End Mill Cutter

Product Description

Multi Flute Carbide End Mill Cutter for and Precise Milling of Hardened Steel and Other Materials

Suitable for processing: ordinary carbon steel, alloy steel, pre hardened steel, stainless steel, copper, etc.

The main difference between these two milling processes is in the cutting device. Face mills have a fine circular design with cutting teeth for horizontal cutting. While end mills, which are usually screw-like, have cutting teeth on the face and sides, which permits end cutting and peripheral cutting.

Main features:

1. Using high-quality tungsten steel base material from China and TiAlN nano coating imported from Switzerland.

2. Adopting a special angle design and strict quality control.

Outer diameter D	Blade length H	Handle diameter d	Total length L
4.0	14	4	50
4.0	14	4	75
5.0	13	5	50
5.0	20	6	75
6.0	15	6	50
6.0	24	6	75
8.0	20	8	60
8.0	30	8	75
10.0	25	10	75
12.0	30	12	75
4.0	20	4	100
5.0	25	5	100
6.0	30	6	100
8.0	35	8	100
10.0	40	10	100
12.0	45	12	100
14.0	45	14	100
16.0	45	16	100
18.0	45	18	100
20.0	45	20	100
6.0	45	6	150
8.0	50	8	150
10.0	60	10	150
12.0	60	12	150
14.0	70	14	150
16.0	75	16	150
18.0	75	18	150
20.0	75	20	150

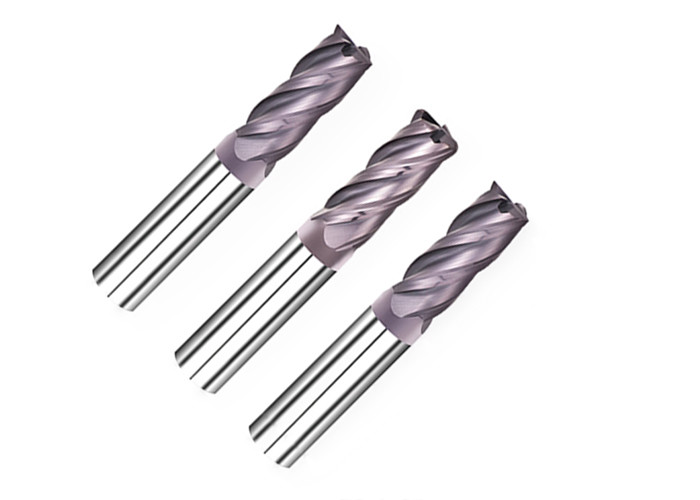

Multi Flute Carbide End Mill Cutter For Precise Milling Of Hardened Steel And Other Materials 0

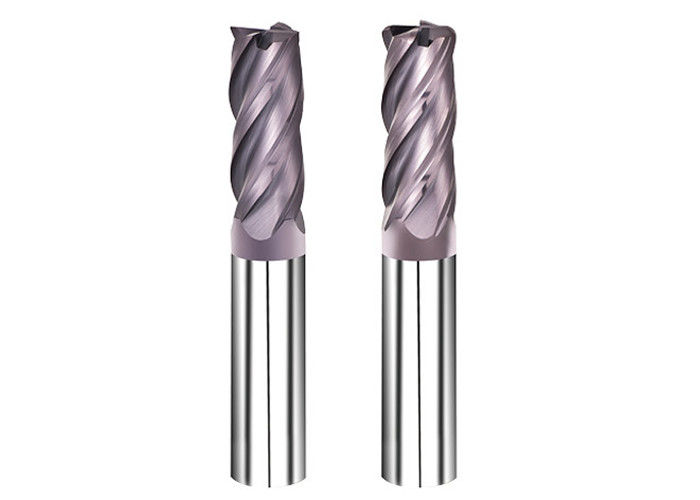

Multi Flute Carbide End Mill Cutter For Precise Milling Of Hardened Steel And Other Materials 1
