Home ProductsCorner Radius End MillHRC50° Corner Radius 4 Flutes Tungsten Carbide General Processing End Mills Cutter
HRC50° Corner Radius 4 Flutes Tungsten Carbide General Processing End Mills Cutter
HRC50° Corner Radius 4 Flutes Tungsten Carbide General Processing End Mills Cutter HRC50° Corner Radius 4 Flutes Tungsten Carbide General Processing End Mills Cutter HRC50° Corner Radius 4 Flutes Tungsten Carbide General Processing End Mills Cutter
Contact Now

HRC50° Corner Radius 4 Flutes Tungsten Carbide General Processing End Mills Cutter

Minimum Order Quantity : 10 pcs Price : Negotiation
Packaging Details : 1PC/ PVC Packing, 10pcs PVC Packing/Pack... Delivery Time : 1-35days
Payment Terms : T/T, L/C,Paypal... Supply Ability : 10000pcs/week
Place of Origin: MADE IN CHINA Brand Name: CKTC
Certification: CCC Model Number: E550 MAX

Detail Information
Product Name: Corner Radius End Mill Raw Material: WF25 / K40
Coating: TiAlN-nano Color: Violet
Hardness: >92HRA Cutting Diameter: Based On The Flute Length
Flutes No.: 4 Flutes Grain Size: 0.6 μm
A.O.L: 50mm-150mm Flexural Strength: 4100mpa
Highlight:

Tungsten Carbide Corner Radius End Mill

,

General Processing Corner Radius End Mill

,

4 Flutes Corner Radius End Mill

Product Description

HRC50° Corner Radius End Mill cutter 4 Flutes Tungsten Carbide General Processing End Mills cutter



Specifications:

E550MAX general processing milling cutter series adopt domestic high-quality fine grain tungsten steel material. Flexural strength: 4100mpa, grain size: 0.6 μm, with TiAlN-nano coating imported from Switzerland. The cutter is designed with special angle, especially suitable for carbon steel, alloy steel, pre-hardened steel and other materials processing.With high precision quality control, and full inspection, all E550MAX series end mills are delivered with 100% qualification rate.



Raw Material WF25 / K40
WC 88%
Co 12%
TRS >4100N/mm2
Hardness >92HRA
A.O.L 50mm-150mm
Grain size 0.6 μm
Upto HRC58
Flutes No 4F
Coating TiAlN-nano
Suitable for Steel,stainless steel,nickel alloy,Titanium alloy,cast iron,plastic and other materials



Coating:

Item TiAlN-nano
Hardness(HV): 2800
Thickness(μm): 2.5-3
Oxidation Temp(°): 800
frictional Coefficient: 0.3
Color: Violet





Outer diameter D Blade length H Handle diameter d Total length L
4.0 14 4 50
4.0 14 4 75
5.0 13 5 50
5.0 20 6 75
6.0 15 6 50
6.0 24 6 75
8.0 20 8 60
8.0 30 8 75
10.0 25 10 75
12.0 30 12 75
4.0 20 4 100
5.0 25 5 100
6.0 30 6 100
8.0 35 8 100
10.0 40 10 100
12.0 45 12 100
14.0 45 14 100
16.0 45 16 100
18.0 45 18 100
20.0 45 20 100
6.0 45 6 150
8.0 50 8 150
10.0 60 10 150
12.0 60 12 150
14.0 70 14 150
16.0 75 16 150
18.0 75 18 150
20.0 75 20 150

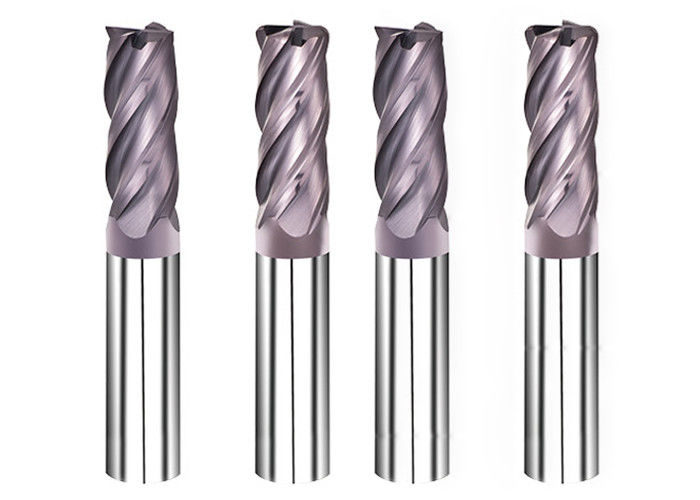

HRC50° Corner Radius 4 Flutes Tungsten Carbide General Processing End Mills Cutter 0

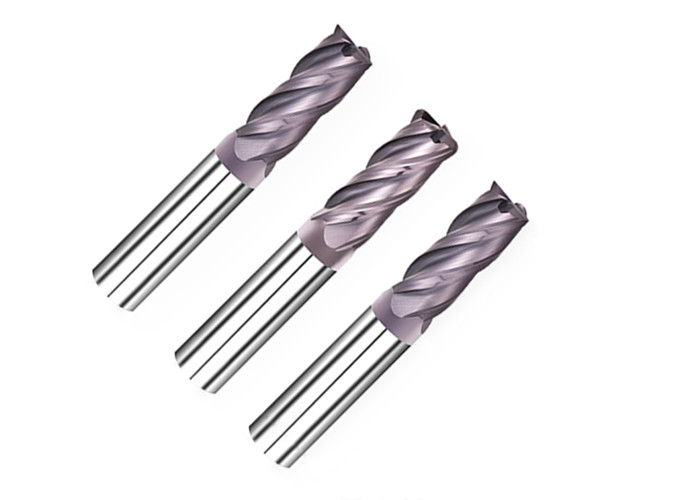

HRC50° Corner Radius 4 Flutes Tungsten Carbide General Processing End Mills Cutter 1




If you need it, please contact me:

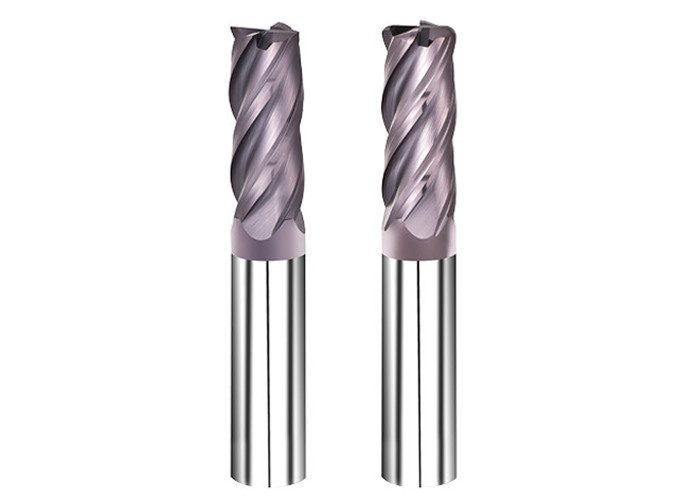

HRC50° Corner Radius 4 Flutes Tungsten Carbide General Processing End Mills Cutter 2 WhatsApp: +86 13357895136









WeChat / WhatsApp / TEL:  +86 13357895136

Email: sales03@cktctools.com

Website: https://www.carbideendmillcutter.com/

Tag:

indexable corner rounding end mill

corner rounding milling cutters

corner radius milling cutters
