Aluminum Cutting Thread Mill Cutter / High Performance Carbide End Mills

Contact Now

Aluminum Cutting Thread Mill Cutter / High Performance Carbide End Mills

Minimum Order Quantity :	10 pcs	Price :	Negotiation
Packaging Details :	1PC/ PVC Packing, 10pcs PVC Packing/Pack...	Delivery Time :	1-35days
Payment Terms :	T/T, L/C,Paypal...	Supply Ability :	10000pcs/week

Place of Origin:	MADE IN CHINA	Brand Name:	KTC
Certification:	CCC	Model Number:	Coated 1*P

Detail Information
Product Name:	End Mills	Raw Material:	GU25UF
Coating:	AlTiN Or TiSiN	Color:	Black Or Copper
Hardness:	>92HRA	Cutting Diameter:	Based On The Flute Length
Highlight:	thread cutting end mill , milling machine end mills

Product Description

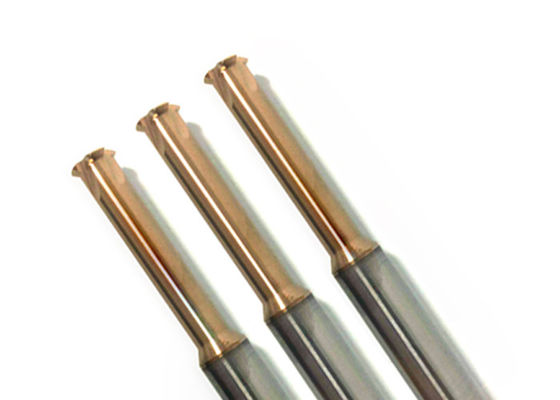

Aluminum Cutting Thread Mill Cutter / High Performance Carbide End Mills

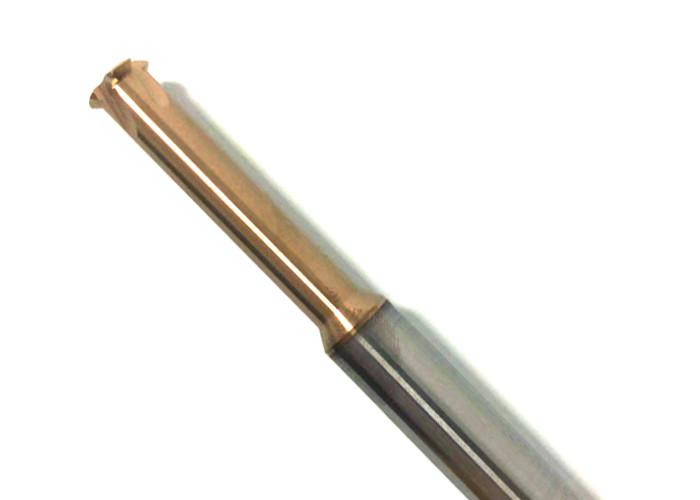

KTC Thread Mill Cutter

Why Threadmill?

You can adjust the tolerance of the thread to your desired fit

It’s better for hard materials, it allows you to cut material in progressive passes

Unlike taps, thread mills won’t get stuck in parts if they break, and often won’t even damage the part

You can cut countless thread sizes with a single tool

Thread milling allows cutting odd sized threads

You can also use a thread mill to back chamfer the hole

Thread milling requires much less horsepower from the machine than tapping

Threadmills are readily available in carbide, as opposed to most taps being HSS or powdered metal

Specifications

Raw Material	GU25UF
WC	92%
Co	8%
TRS	>4300N/mm2
Hardness	>92HRA
A.O.L	50mm-90mm
Grain size	0.4 μm
Upto	HRC60
Flutes No	3/4/5/6F
Coating	AlTiN or TiSiN
Suitable for	copper, aluminum, medium and high carbon steel, die steel, pre-hardened steel and other material hole processing

Coating:

Item	AlTiN	TiSiN
Hardness(HV)	3200	3600
Thickness(UM)	2.5-3	3
Oxidation temp(°)	900	1000
Friction coeffient	0.3	0.45
Color	Black	Copper

Standard Sizes

*60° Micro 1P**
Pitch (mm)	M Coarse Thread	M Fine Thread	Shank Dia.	Edge Dia.	No. of Flutes	Flute Length	Overall Length
0.25	M1.0*0.25	M1.4*0.25	4	0.7	3	3.1	50
0.25	M1.2*0.25	M1.4*0.25	4	0.9	3	38	50
0.3	M1.4*0.3		4	1.05	3	4.4	50
0.35	M1.6*0.35		4	1.2	3	5	50
0.35	M1.8*0.35	M2.0*0.35	4	1.4	3	5.6	50
0.4	M2.0*0.4		4	1.5	3	6.2	50
0.45	M2.5*0.45		4	1.95	3	7.7	50
0.5	M3*0.5		4	24	3	9	50
0.6	M3.5*0.6		4	2.75	3	10	50
0.7	M4*0.7		4	3.15	3	12	50
0.8	M5*0.8		4	4	3	15	50
1.0	M6*1.0		6	4.8	3	19	60
1.25	M8*1.25		6	6	3	26	60
1.5	M10*1.5		6	8	3	32	60
1.5	M12*1.5		10	9.4	4	38	75
1.75	M12*1.75		10	9.4	4	38	75
2.0	M14*2.0		12	10.2	4	44	75
2.0	M16*2.0		14	13	4	48	80
2.5	M18*2.5		16	14.5	4	60	90
2.5	M20*2.5		16	16	5	60	90

*60° UN/ M Series Micro 1P**
Pitch		UN/UNS /UNF /UNEF	M Coarse Thread	M Fine Thread	Shank Dia.	Edge Dia.	No. of Flutes	Flute Length	Overall Length
mm	TPI	UN/UNS /UNF /UNEF	M Coarse Thread	M Fine Thread	Shank Dia.	Edge Dia.	No. of Flutes	Flute Length	Overall Length
0.5-0.8	32-56	No.10-56UNS,No.10-48UNS,No.10-40UNS,No.10-36UNS,No.10-32UNF	M5*0.8	M50.5,M50.75	4	3.9	4	16	50
0.5-1.0	24-56	No.12-56UNS,No.10-48UNS,1/4-40UNS,1/4-36UNS,1/4-32UNEF,1/4-28UNF	M6*1.0	M60.5,M60.75	6	4.85	5	20	60
0.5-1.25	20-48	5/16-48UNS,5/16-40UNS,5/16-36UNS,5/16-32UNEF,5/16-28UN,5/16-27UNS,5/16-24UNS,5/16-20UN	M8*1.25	M70.5,M70.75,M7.5*1.0	6	5.9	5	25	60
0.5-1.0	24-56	7/16-24UNS,1/2-16UNS,1/2-18UNS,1/2-16UNS,1/2-14UNS		M100.5,M110.75,M11*1.0	10	9.9	6	35	75
1.0-1.5	16-24	3/8-24UNF,3/8-20UNS,7/16-18UNS,7/16-24UN	M10*1.5	M50.5,M50.75	8	7.9	6	32	60
1.0-1.75	14-24	1/2-24UNS,1/2-20UNS,1/2-18UNS,1/2-16UNS,1/2-14UNS	M12*1.75	M50.5,M50.75	10	9.9	6	38	75
1.0-1.75	14-24	M50.5,M50.75		M50.5,M50.75	12	11.9	6	45	75
