Product Description

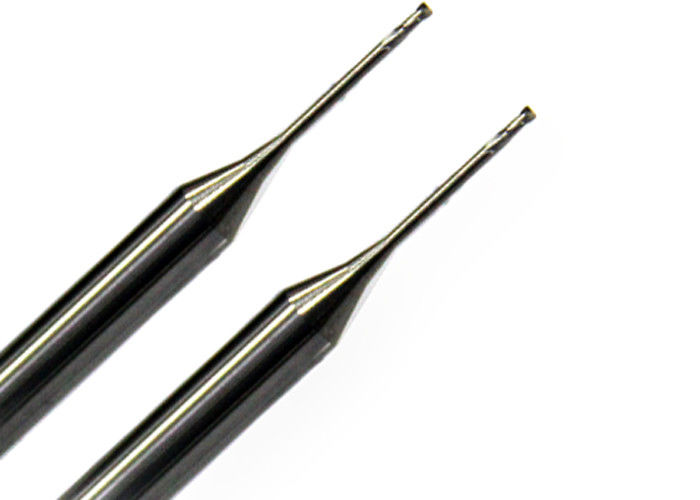

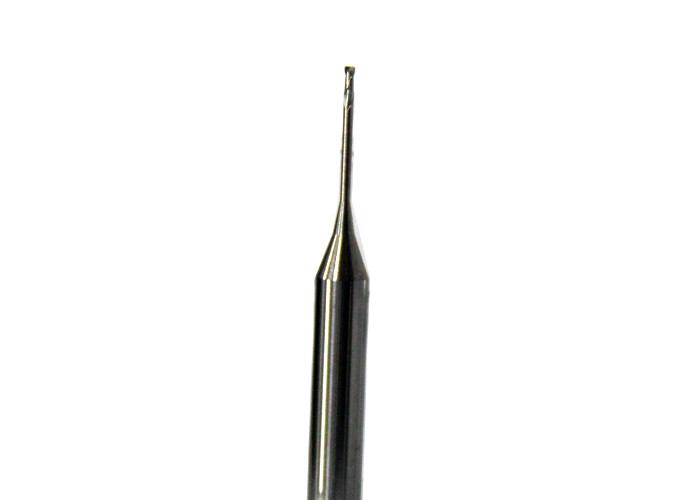

High Quality And Professional Micro End Mill For Precision Machining
We have QC in the production, every production process has inspection, every step has strict inspection and control, quality inspection staff accounted for 25% of the total number of the company.
To ensure the quality of goods, before packaging, all goods have been inspected. With high precision quality control and full inspection, all our end mill cutters are delivered with 100% qualification rate.
Deep Groove V600 adopts high-quality high-quality ultra-fine grain tungsten steel material at home and abroad, with bending strength of 4500mpa and grain size of 0.2μm, including micro diameter milling cutter special for steel or aluminum, coating or no coating. The coating adopts AlTiN or TiSiN imported from Switzerland. Micro diameter milling cutters are all made of high-precision five axis grinding machines, such as ROLLOMATIC of Switzerland and MICRO of Germany, to ensure the accuracy of the cutters. With high precision quality control, and full inspection, all deep groove V600 series end mills are delivered with 100% qualification rate.
Specifications
| Raw Material |
AF308/510 |
| WC |
88% |
| Co |
12% |
| TRS |
>4500N/mm2 |
| Hardness |
>92HRA |
| A.O.L |
50mm |
| Grain size |
0.2μm |
| Upto |
HRC60 |
| Flutes No |
2F |
| Coating |
AlTiN or TiSiN |
| Suitable for |
Steel,stainless steel,nickel alloy,Titanium alloy,cast iron,plastic and other materials |
Coating:
| Item |
AlTiN |
TiSiN |
| Hardness(HV): |
3200 |
3600 |
| Thickness(μm): |
2.5-3 |
3 |
| Oxidation Temp(°): |
900 |
1000 |
| frictional Coefficient: |
0.3 |
0.45 |
| Color: |
Black |
Copper |
Deep Groove Standard Sizes: Blade length and closed hole
| Size |
Length of (Flute +Under Neck) |
Flute Length of End Mills(mm) |
| D0.2/R0.1*D4*50 |
1,2 |
0.4 |
| D0.3/R0.15*D4*50 |
1,2,3 |
0.6 |
| D0.4/R0.2*D4*50 |
2,3,4,6 |
0.8 |
| D0.5/R0.25*D4*50 |
2,3,4,5,6,8 |
1 |
| D0.6/R0.3*D4*50 |
3,4,5,6,8 |
1.2 |
| D0.7/R0.35*D4*50 |
3,4,5,6,8,10 |
1.4 |
| D0.8/R0.4*D4*50 |
3,4,5,6,8,10 |
1.6 |
| D0.9/0.45*D4*50 |
3,4,5,6,8,10 |
1.8 |
CHANGZHOU XINPENG MANUFACTURING CO., LTD. was established in 2003, as a machine tool factory.
We are manufacturer and exporter of Solid Carbide Micro Flat End Mills that are in demand throughout the market for their superior quality, long performance life, reliability and dimensional accuracy. These Carbide End Mill Products can be availed at industrial leading price.
We can customize as per customer's requirements or drawings.
We always strive to provide speedy and courteous service.
Through our promotion of technology and information exchange to transcend divisions in regions and business categories, we aim to actively support manufacturing industries.
Looking ahead, we will continue to endeavor and take on all challenges.
