Detail Information |
|||
Product Name: | End Mills | Raw Material: | GU20UF/TF200 |
---|---|---|---|
Coating: | Balzers/TiSiN | Color: | Black/Copper |
Hardness: | >91.5HRA | Cutting Diameter: | Based On The Flute Length |
Highlight: | solid tungsten carbide drill bits,tungsten steel drill bits |
Product Description

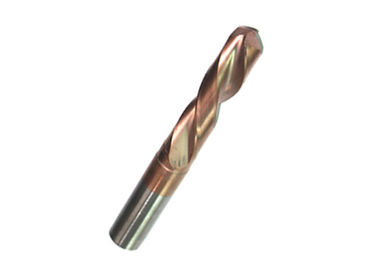

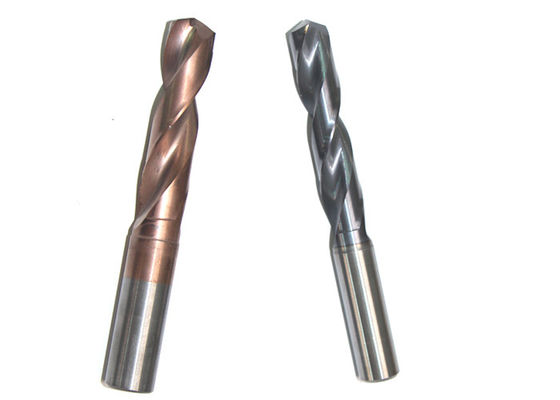

3mm 4mm 5mm Solid tungsten carbide drill bits Set For Porcelain Tile
tungsten carbide drill bits
Description
Choosing the right drill bit for the task is an important part of any project or application. Whether it’s matching the appropriate bit to the substrate material, getting the right match for the depth and diameter of the hole, or even the volume of work needed, the right choice can extend the life of your drill bits. This in turn helps to improve productivity by allowing you to get more done with each drill bit.
Specifications
DB-3D/5D Tungsten steel drill bit is made of imported fine particle tungsten steel material with bending strength of 4300mpa, grain size of 0.6 μm, and high-performance composite coating imported from Switzerland. The cutter adopts special angle design, strict quality control, self inspection rate of 100%, qualification rate of more than 98%, suitable for hole processing of various grades of steel, non-ferrous metals and other materials.
Raw Material | GU20UF/TF200 |
WC | 89% |
Co | 11% |
TRS | >4300N/mm2 |
Hardness | >91.5HRA |
A.O.L | 66mm-153mm |
Grain size | 0.6 μm |
Upto | HRC55-60 |
Coating | Balzers/TiSiN |
Suitable for | various grades of steel, non-ferrous metals and other materials |
Coating
Item | TiSiN |
Hardness(HV) | 3600 |
Thickness(UM) | 3 |
Oxidation temp(°) | 1000 |
Friction coeffient | 0.45 |
Color | Copper |
Standard Sizes
Flute Length=3*D | |
Cutting Diameter | Shank Diameter* Overall Length |
D3-D6 | D6*66L |
D6.1-D8 | D8*79L |
D8.1-D10 | D10*89L |
D10.1-D12 | D12*102L |
D12.1-D14 | D14*107L |
D14.1-D16 | D16*115L |
D16.5-D18 | D18*123L |
D18.5-D20 | D20*131L |
Flute Length=5*D | |
Cutting Diameter | Shank Diameter* Overall Length |
D3-D3.7 | D6*66L |
D4-D4.65 | D6*74L |
D4.8-D6 | D6*82L |
D6.1-D8 | D8*91L |
D8.1-D10 | D10*103L |
D10.1-D12 | D12*118L |
D12.1-D14 | D14*124L |
D14.1-D16 | D16*133L |
D16.5-D18 | D18*143L |
D18.5-D20 | D20*153L |
